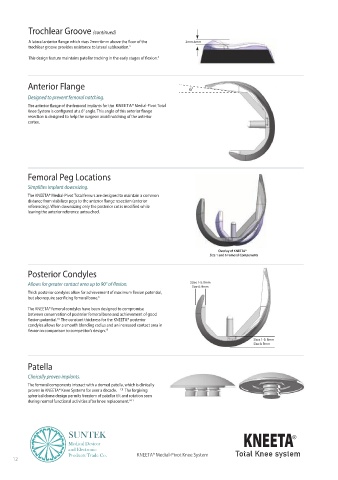

Page 12 - KNEETA

Trochlear Groove (continued)

2mm-6mm
trochlear groove provides resistance to lateral subluxation. 4
5

Anterior Flange 6°

Designed to prevent femoral notching..
KNEETA Medial-Pivot Total
resection is designed to help the surgeon avoid notching of the anterior
cortex.

Femoral Peg Locations

The KNEETA® Medial-Pivot Total femurs are designed to maintain a common

leaving the anterior reference untouched.

Overlay of KNEETA®
Size 1 and 6 Femoral Components

Posterior Condyles
Sizes 1-5: 8mm
Size 6: 9mm

6
The KNEETA® femoral condyles have been designed to compromise
between conservation of posterior femoral bone and achievement of good
14 The constant thickness for the KNEETA® posterior
condyles allows for a smooth blending radius and an increased contact area in
15
Sizes 1-5: 8mm
Size 6: 9mm

Patella

Clinically proven implants.
The femoral components interact with a domed patella, which is clinically
proven in KNEETA® Knee Systems for over a decade. 7,8 The forgiving
spherical dome design permits freedom of patellar tilt and rotation seen
during normal functional activities after knee replacement. 9-11

SUNTEK KNEETA R

Medical Devices
and Electronic
Products Trade Co. KNEETA® Medial-Pivot Knee System Total Knee system
